FAL22030, Square D, FAL Series, type FAL, 2P, 1PH, 30A, 240V, 10kA@240V, standard interrupting capacity, Feed-Thru, complete with LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Thermal Magnetic molded case circuit breakers
Configuration Type
Loose or configurable
Current Type
AC/DC
Extended Product Type
M E2.2...E6.2 100-130 VAC/DC
Material Code
1SDA073724R1
Product Net Weight
1 kg
Rated Voltage Ur
100...130 V
Draw-out circuit breaker with slide-in module frame 3-pole, Size 2, IEC In=2500 A to 690 V, 50/60 Hz AC Icu=66 kA at 500 V Rear horizontal connection Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC C20= Spring charge status indicator not possible with option F02 C22= Ready indicator F40= Sealing disc for ETU25-76 for protection against unauthorized operation M45= Opening solenoid, overexcited 110-127 V AC/110-125 V DC 5% on-load factor, not for continuous operation R16= Position signaling switch, withdrawable part 6 changeover contacts
AE3200-SW,3200A,690VAC,3 P
Compact design for easy usage
High Breaking capacity upto 250kA
Intelligent communication through CC-Link
Electronic MCCB with display body for various measurement also available
3WL9111-0AP01-0AA0 SIEMENS accessories circuit breaker 3WL door sealing frame IP41 for inst. In contr.cabine.
accessories circuit breaker 3WL door sealing frame IP41 for inst. In contr.cabinet door
ACCESSORIES P / SWITCHES 3WL FRAME DOOR GASKET IP41 FOR MOUNTING ON BOARD DOOR. Manufactured to order. Non-Cancelable Non-Returnable.
Accessories circuit breaker 3WL maine conductor conn. 1 piece fixed-mounted circ.br. size II front conn. top dual hole front accessible up to2000A
ACCESSORIES P / SWITCHES 3WL CONNECTIONS COND. PPALES. 1 PCS MONT SWITCH. FIXED TAM II CONEX. FRONT. TOP 2 HOLE ACCESSIBLE FRONTALLY UP TO 2000A. Manufactured to order. Non-Cancelable Non-Returnable.
This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 6A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 85mm x (D) 78.5mm. The weight is 0.375kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

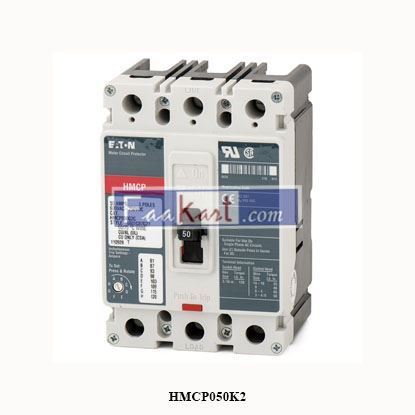

Eaton, Series C, type HMCP, 3PH, 3P, 600V, 50A, 65kA@480V, Feed-Thru, complete with I - Instantaneous trip functions, Magnetic Only, molded case circuit breaker
