Allen-Bradley

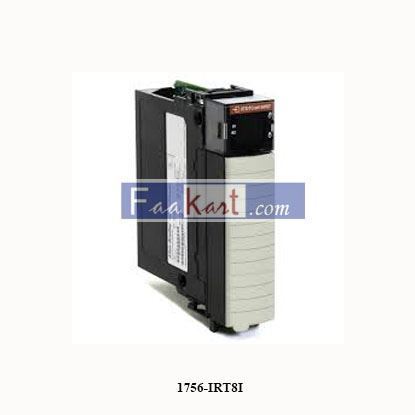

RTD / Ohms / Thermocouple / mV Input Module, 8 Individually Configurable Isolated Points, 36 Pin The 1756-IRT8I is a ControlLogix analog input module. It has Eight (8) individually isolated channels compatible for Resistance Temperature Detector (RTD) and Thermocouple sensors. Compatible RTDs are 100, 200, 500, 1000 ? Platinum, alpha=385; 100, 200, 500, 1000 ? Platinum, alpha=3916; 120 ? Nickel, alpha=672; 100, 120, 200, 500 ? Nickel, alpha=618; and 10 ? Copper. Compatible Thermocouples are Type B, C, D, E, J, K, N, R, S, T, TXK/XK (L). It is also capable of receiving millivolt signals with range of -100…100 mV.

The 1734-OW4 is an Allen-Bradley POINT IO module. This module is a Relay output module featuring Four (4) Normally Open (N.O.) SPST Relay contact outputs. The contact outputs are rated 5-30 VDC; 120 VAC and 250 VAC. This module has a POINTBus current draw of 90 mA @ 5DVC. It requires use of 1734-TB, 1734-TBS, 1734-TOP, or 1734-TOPS terminal base for mounting and wiring the module.

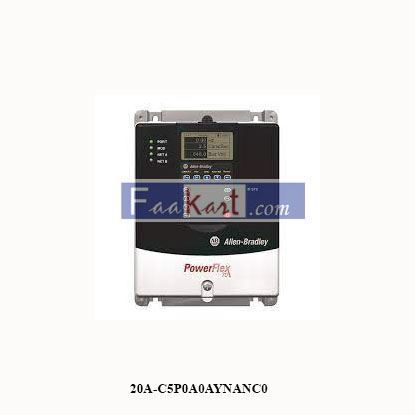

This Allen Bradley PF70 is a 2.2 kW rated unit. In addition, it is a 5 Amp unit and is a 3 HP drive. This AC drive is housed in a panel mount - IP 20 enclosure. This VFD comes with no HIM included, instead the drive comes with a blank cover. This PowerFlex 70 has a B frame size.

The 1756-LSP is part of the 5570 GuardLogix Programmable Automation Controller (PAC). This module is a safety partner module which acts as a co-processor for safety functions. It is a chassis-based module with integrated memory that corresponds to the memory of the installed primary control. This memory may be a 1MB-3.75MB safety memory. It is installed beside the primary controller and draws current from the backplane amounting to 1200 milliamperes @ 5.1 Volts DC and 14 milliamperes @ 24 Volts DC.

: The Allen-Bradley 22B-D1P4N104 is a PowerFlex 40 Adjustable Frequency AC Drive. This drive has a supply voltage requirement of 342-528 VAC, 3-phase. It has an output power output rating of 0.4 kW or 0.5 HP and Current of 1.4 Amperes

Allen-Bradley 1756-L63 ControlLogix Logix5563 Controller with 8 Mbyte Memory with (1) RS-232 Serial Port, 32 Tasks, 100 Programs/Task
