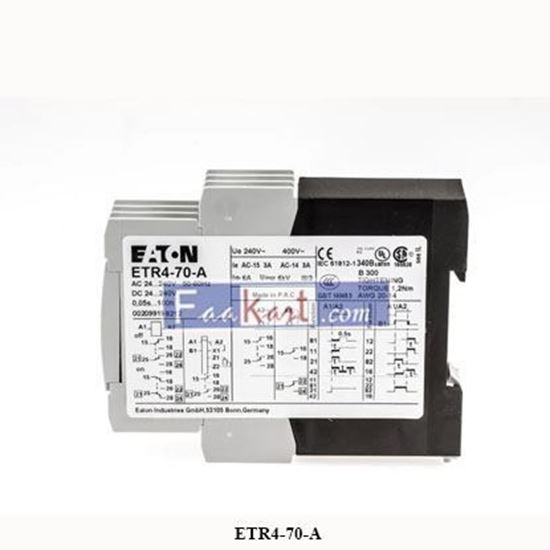

ETR4-70-A Eaton DIN Rail Multi Function Timer Relay 031888

Electronic timer relay according to IEC/EN 61812-1, VDE 0435, 22.5 mm wide, Time Range 0.05 s-100H, mechanical life 30 * 106, DIN rail mounting, any mounting position, 24-240V AC/DC, multi-functional, industrial design

This text is machine-translated.

Highlights & Details

• OPERATING VOLTAGE 24–240 V DC/AC
• Time range: 0.05 s – 100 h
• Top-hat DIN rail mounting

• Conductor cross-sections: 1 x (20–14) AWG
• Number of outputs, instantaneous, changer: 2
• Number of outputs, delayed, changer: 2
• Number of changeover contacts: 2
• Outputs, switchable delay/instantaneous: Yes
• Rated control supply voltage US at 50 Hz AC 24–240 V.
• Rated control supply voltage: US at 60 Hz, AC 24–240 V.
• Rated control supply voltage US at 24–240 V DC
• Rated surge voltage resistance [Uimp]: 6000 V AC
• Inlet to IEC/EN 61000-4-6: 10 V.
• Electrostatic discharge (ESD): 6 kV
• Remote control is possible.
• Suitable for front mounting: no.
• Suitable for DIN rail mounting: Yes
• Power consumption: 1.8 W
• Maximum switching frequency: 4000 s/h.
• Nominal current: 3 A
• Safe isolation according to EN 61140: 250 V AC
• Overvoltage category/pollution degree III/2
• Power loss per pole, current-dependent [PVID]: 1.4 W.
• Static power loss, independent of current [PVS]: 1.8 W.
• Time range: 0.05 s – 100 h
